L-Plate for Canon EOS R5 Mark II

TECHNICAL SPECIFICATIONS

Model: QRL C52 L-Plate

Compatibility: Canon EOS R5 Mark II

Construction Type: One-piece CNC-machined construction

Mounting Standard: Arca-Swiss compatible (Dovetail grooves on both axes)

Primary Material: High-strength aluminum alloy

Integrated Tools: UK-made precision bubble level, Magnetically-secured coin tool

Light Weight: 82g / 0.18 lb

KEY FEATURES

• Wide-angle Flip-Out Screen Access
• Unobstructed Port Accessibility
• Single-Piece CNC Design
• Compatible with ROGETI Smartphone Clamp
• Built-in high-accuracy precision bubble level (UK-made)
• Magnetic Mounting Disc
• Lightweight

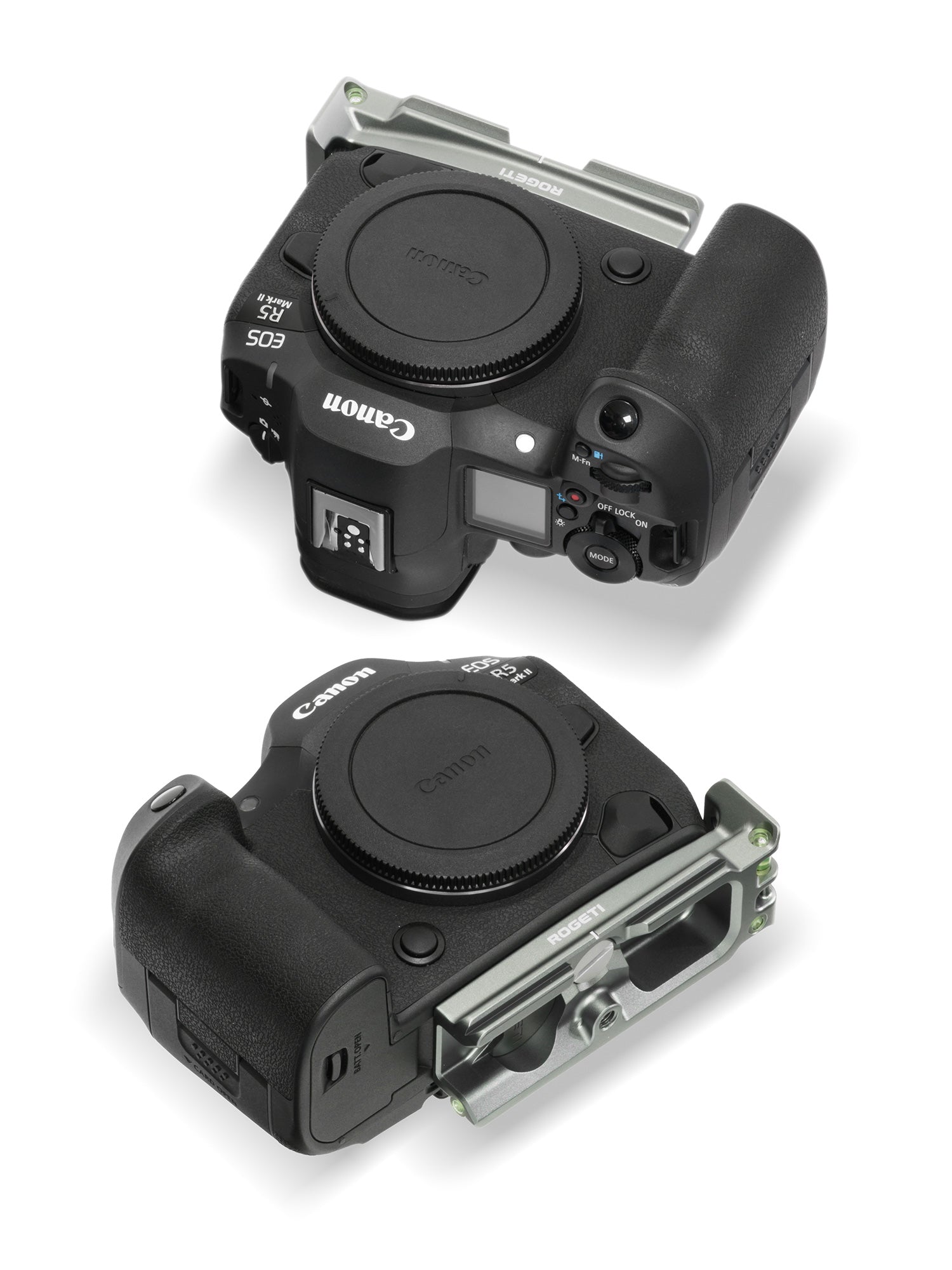

Optimized for Canon EOS R5 Mark II, Redefining Traditional L-Brackets

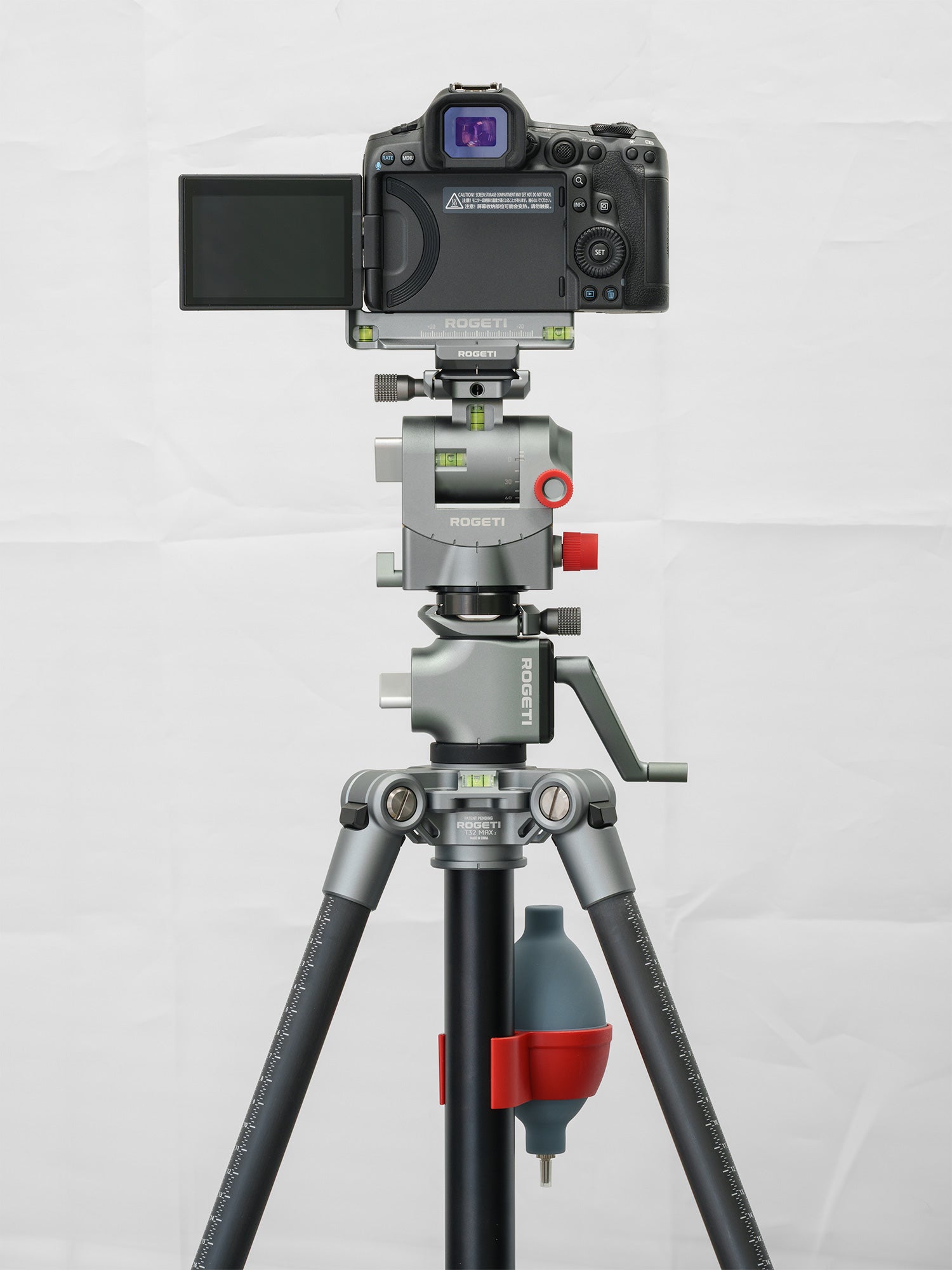

The innovative ROGETI® L-Bracket addresses the unique design requirements of the Canon EOS R5 Mark II, whose wide port area and flip-out screen have made traditional L-brackets cumbersome to use. Featuring a compact 25mm short-side plate, the bracket ensures unrestricted angles for the flip-out screen, significantly enhancing usability. It allows photographers seamless cable management in both horizontal and vertical positions. Details such as the elegantly integrated magnetic mounting disc, precision bubble level sourced from the UK, and rounded strap attachment points highlight ROGETI®'s commitment to sophisticated industrial aesthetics and superior craftsmanship.

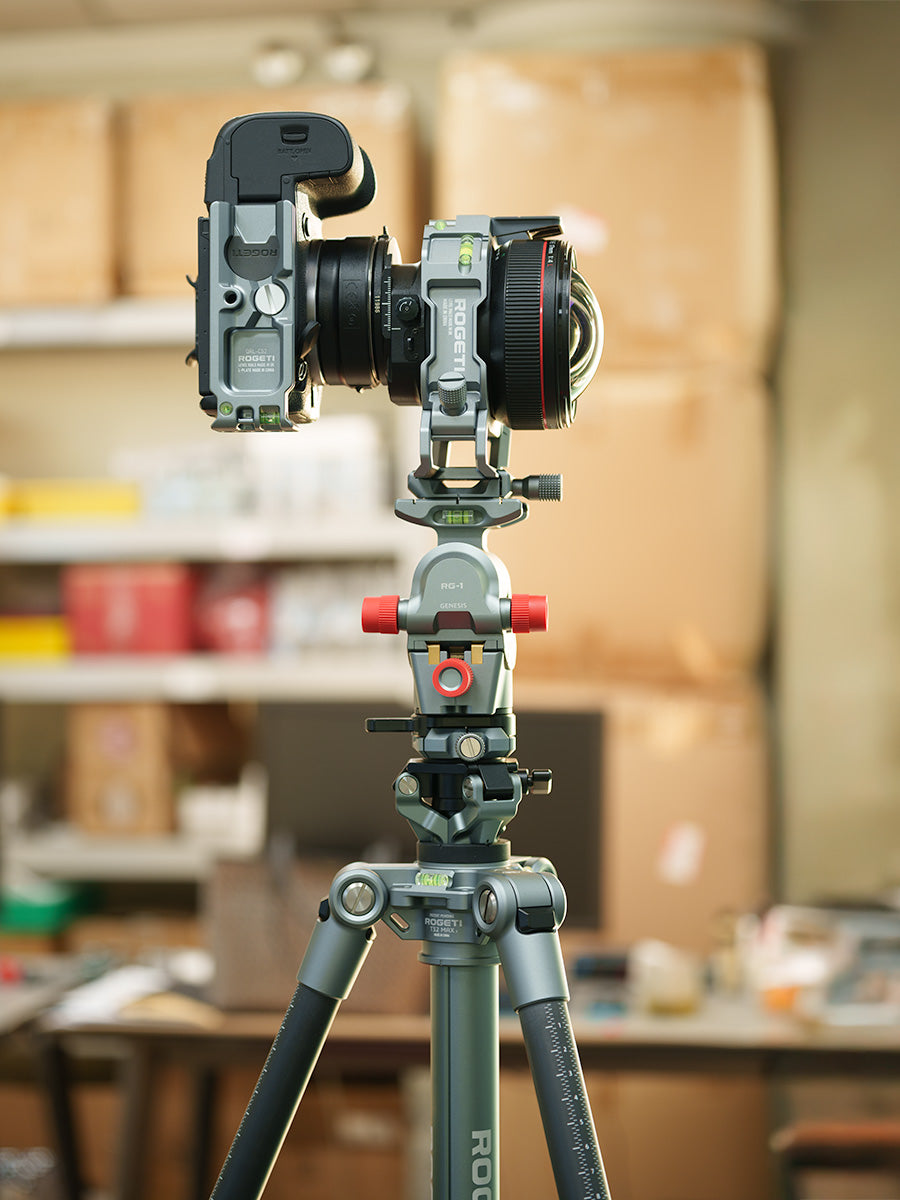

Lightweight Stability with Versatile Expandability

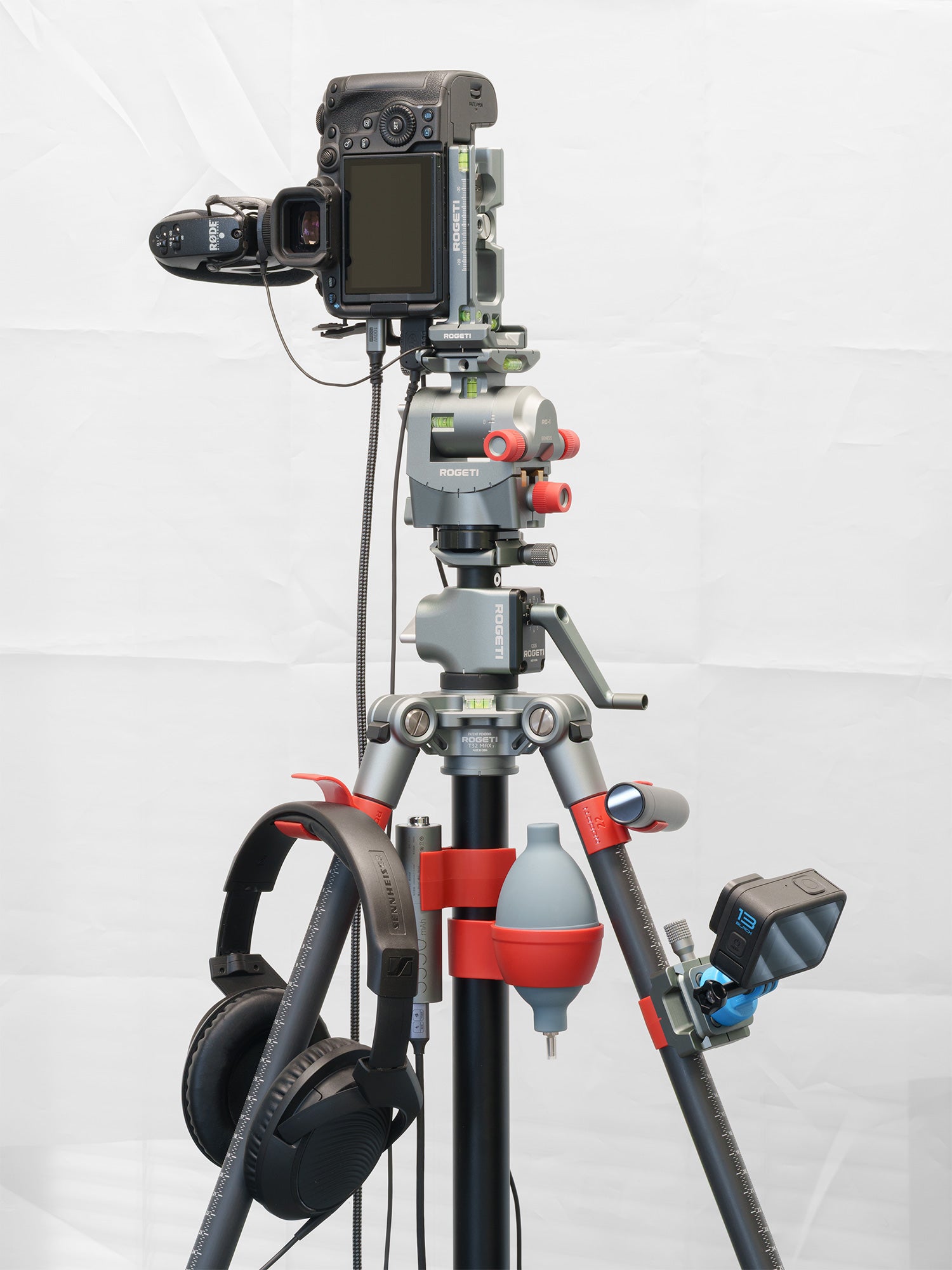

The bracket's horizontal plate is designed slightly thicker to provide secure clamping during vertical shooting, yet maintains a remarkably lightweight profile of just 82 grams. Its thoughtful design includes three additional 1/4” threaded holes on the side, allowing easy attachment of accessories like smartphones. Additionally, a supplementary 1/4” threaded hole at the bottom facilitates easy connections with gimbals, stabilizers, or vertical quick-release plates.

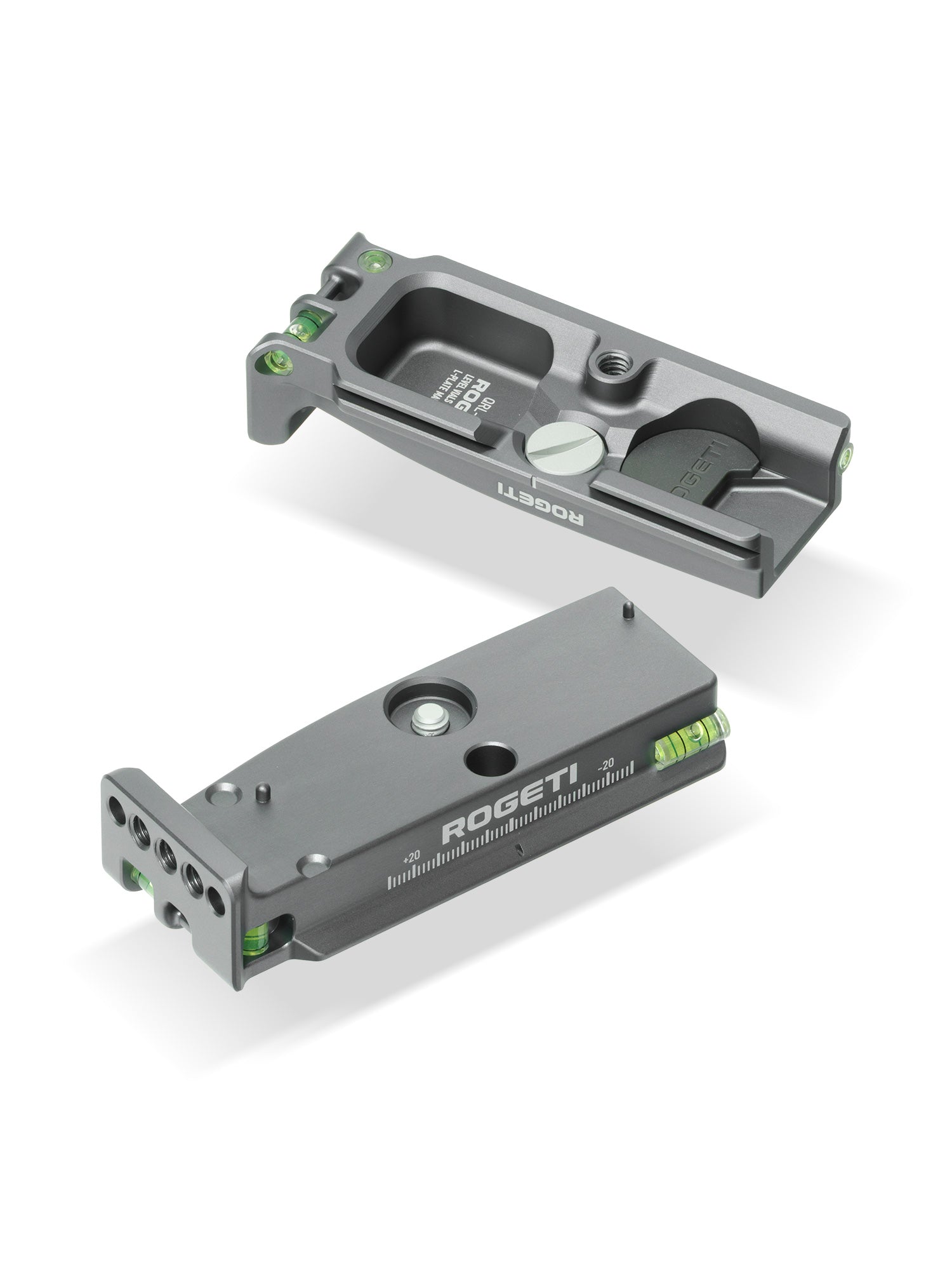

Precision CNC Craftsmanship, Excellence in Every Detail

Precision-crafted from a single piece of aluminum using advanced CNC machining, the ROGETI® L-Bracket exemplifies exceptional quality and meticulous attention to detail. Integrated features—including locating pins and the hollowed-out strap bar—demonstrate manufacturing excellence. Uniquely, the strap attachment points have smoothly rounded edges, even on internal surfaces.
